Boost gauge installation

Where is the best place to tap for a boost gauge?

Also, being my first diesel, is there any reason for vacuum on the boost gauge? Meaning, should I just get boost pressure and not vacuum?

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
Sponsored Links
Advertisement

post #2 of 29 (permalink) Old 03-27-2017, 02:36 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
I have the AFE Hard pipe, my experience with Gas motors is you need to be post throttle blade, but I guess with the diesel and the full delete this wouldn't be necessary. The Hard pipe already has threaded bungs I could remove and use that, would make it easy. My experience post turbo pre-TB is you always see boost, so vacuum didn't make much sense, but with the Diesel not having a TB (I know we do, but post delete it will remain open) not sure what the pressure/vacuum situation looks like

Thoughts?
lqdchkn likes this.

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips



Last edited by mrpositraction; 03-27-2017 at 02:50 PM. Reason: Added clarity
mrpositraction is online now
post #3 of 29 (permalink) Old 03-27-2017, 03:17 PM
Member

RedEyeB20's Avatar

Join Date: Dec 2016
Location: An Island, Washington state
Posts: 69
My previous experience with TDI has the tap point in the IC pipe just before the intake body or in the intake (throttle) body itself. I would think it would be the same on the 2.8. Either location will work but in the body itself may interfere with the shut down flap unless it is deleted which isn't a good idea.

2017 Canyon SLT. Crew cab, 2.8L Duramax, 4WD, Silver/Cocoa.
RedEyeB20 is offline

post #4 of 29 (permalink) Old 03-27-2017, 04:48 PM
Senior Member

Join Date: May 2015
Location: Texas
Posts: 549
With a wide open TB I can't see why the pipe wouldn't be fine. No need for vacuum on the gauge. I think I've seen 1-2 inches of vacuum max on my truck.
hacklerjason likes this.

2016 CCSB Duramax

onebaddz is online now
post #5 of 29 (permalink) Old 03-28-2017, 08:35 AM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
Here are the gauges I ordered. I originally went with green as the night glow but our dash is more blue (not green at all after driving in this morning)

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #6 of 29 (permalink) Old 03-28-2017, 08:36 AM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
I also confirmed I have 1/8" NPT ports on both the hot and cold side of the AFE pipes, this will make install very easy.

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #7 of 29 (permalink) Old 04-06-2017, 12:40 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
I just updated my boost gauge to 45 psi. After purchasing an OBDII Dongle and OBD Fusion I have seen boost over 30 psi (I have Duramaxtuner and AFE intake and bladerunner kit, not sure if that matters). I have also read with certain scenarios you can see boost higher than that. Since I didn't want my boost gauge topping out at 30psi and not knowing what it was doing, I decided to change it. I also (before this) changed the background during night time to be blue instead of green.
Attached Images
File Type: png Speedhut final EGT and Boost gauge order.png (64.1 KB, 58 views)

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #8 of 29 (permalink) Old 04-06-2017, 02:12 PM
Senior Member

Join Date: May 2015
Location: Texas
Posts: 549
I've seen mid to upper 30s with a small trailer. Never over 26ish just the truck though

2016 CCSB Duramax

onebaddz is online now
post #9 of 29 (permalink) Old 04-06-2017, 02:15 PM
Senior Member

Join Date: Feb 2017
Location: Ohio North Coast of America
Posts: 507
My problem is where to mount the gauge?








I have an Aeroforce Gauge I used in my Turbo HHR and I would like to use it in the GMC. No one makes a good pillar pod or gauge pod for these trucks yet. Has anyone found a viable pod?
hyperv6 is online now
post #10 of 29 (permalink) Old 04-06-2017, 02:31 PM
Senior Member

Thunderbear's Avatar

Join Date: Jul 2015
Location: The Great Land
Posts: 177
Garage
Quote:
Originally Posted by hyperv6 View Post
My problem is where to mount the gauge?

I have an Aeroforce Gauge I used in my Turbo HHR and I would like to use it in the GMC. No one makes a good pillar pod or gauge pod for these trucks yet. Has anyone found a viable pod?

I think the one MrP bought was originally sourced from here:

CHEVROLET - Ortiz Custom Pods

vi et armis invictus maneo..
Thunderbear is offline
post #11 of 29 (permalink) Old 04-06-2017, 02:59 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
Quote:
Originally Posted by Thunderbear View Post
I think the one MrP bought was originally sourced from here:

CHEVROLET - Ortiz Custom Pods
I bought mine used from a member on here, but that looks like it! You can also get them on eBay, probably this seller selling on eBay

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #12 of 29 (permalink) Old 04-06-2017, 03:01 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
Quote:
Originally Posted by onebaddz View Post
I've seen mid to upper 30s with a small trailer. Never over 26ish just the truck though
Using the OBD Fusion, encountering a small hill and the right amount of throttle I have seen over 30 (hell just in town during lunch I hit 28psi). I haven't played enough to know what "sustainable" boost is but I do want the ability to see the spikes as well.

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #13 of 29 (permalink) Old 04-06-2017, 06:56 PM
Senior Member

Join Date: Feb 2017
Location: Ohio North Coast of America
Posts: 507
Thanks I e mailed them and asked if they had plans for a single pillar pod for gauges as there is a booming Diesel engine in this model now and no one makes one.

For what is worth I was hitting 23 PSI with my Ecotech turbo and it was only limited by altitude and a weak trans axle. That was on pump gas. It is amazing to see such high boost pressures today. Turbo engines are amazing gas of Diesel.
mrpositraction likes this.

Last edited by hyperv6; 04-06-2017 at 06:58 PM.
hyperv6 is online now
post #14 of 29 (permalink) Old 04-06-2017, 07:55 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage


Here is from a stand still on flat ground. (FOCUS ON THE RED MARKS ON GAUGE FOR MAX)

Check out those EGT eeeeeeeek

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #15 of 29 (permalink) Old 04-14-2017, 07:08 AM
Senior Member

hacklerjason's Avatar

Join Date: May 2016
Location: Ask Me
Posts: 1,377
Quote:
Originally Posted by mrpositraction View Post


Here is from a stand still on flat ground. (FOCUS ON THE RED MARKS ON GAUGE FOR MAX)

Check out those EGT eeeeeeeek
That EGT reading is worthless and not picking up temp from the right place.. None of the obd EGT sensors can be used for anything except monitoring a regen to see its progress through the stages. Also, the boost you are seeing is not gauge pressure, it's absolute. So if you're seeing 30psi for example, subtract baro of let's say 14.5 and you're left with 15.5... The boost tables stock are written to max around 26psi(gauge) which would be about 39.5(absolute)

Sent from my LG-H918 using Tapatalk
hacklerjason is offline
post #16 of 29 (permalink) Old 04-14-2017, 08:06 AM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
[QUOTE=hacklerjason;4214633]That EGT reading is worthless and not picking up temp from the right place.. None of the obd EGT sensors can be used for anything except monitoring a regen to see its progress through the stages. Also, the boost you are seeing is not gauge pressure, it's absolute. So if you're seeing 30psi for example, subtract baro of let's say 14.5 and you're left with 15.5... The boost tables stock are written to max around 26psi(gauge) which would be about 39.5(absolute)

Sent from my LG-H918 using Tapatalk[/QUOTE

Well then I guess I have room on my 45psi boost gauge for a future turbo LOL
hacklerjason likes this.

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #17 of 29 (permalink) Old 04-14-2017, 08:48 AM
Senior Member

Join Date: Feb 2017
Location: Ohio North Coast of America
Posts: 507
I contacted the Ortiz pod maker and he said he can do a single pillar pod for the 2015-17 trucks. $139.
hyperv6 is online now
post #18 of 29 (permalink) Old 04-17-2017, 12:18 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage
Quote:
Originally Posted by hacklerjason View Post
That EGT reading is worthless and not picking up temp from the right place.. None of the obd EGT sensors can be used for anything except monitoring a regen to see its progress through the stages. Also, the boost you are seeing is not gauge pressure, it's absolute. So if you're seeing 30psi for example, subtract baro of let's say 14.5 and you're left with 15.5... The boost tables stock are written to max around 26psi(gauge) which would be about 39.5(absolute)

Sent from my LG-H918 using Tapatalk
Was thinking about this, if this was the case, wouldn't I see 14.5psi on my digital gauge at idle (assuming very little vacuum reported by others)? The scaling could be off, but it isn't a straight line subtraction of atmospheric pressure.

2016 Colorado LT Diesel
Red Rock, Sports bar, Black 5" assist steps, EGT and Boost Gauge with custom bezel mount
AFE Magnum Intake and Bladerunner Hot/Cold side Kit
Duramaxtune DSP-4 Tuning
AFE Rebel side exit turbo back w/ Black tips


mrpositraction is online now
post #19 of 29 (permalink) Old 04-17-2017, 12:39 PM
Senior Member

Join Date: May 2015
Location: Texas
Posts: 549
There are PIDs for both absolute pressure as well as just boost pressure in OBD Fusion.

2016 CCSB Duramax

onebaddz is online now
post #20 of 29 (permalink) Old 05-03-2017, 02:05 PM Thread Starter
Senior Member

mrpositraction's Avatar

Join Date: Jan 2017
Location: Whietwater, WI
Posts: 402
Garage

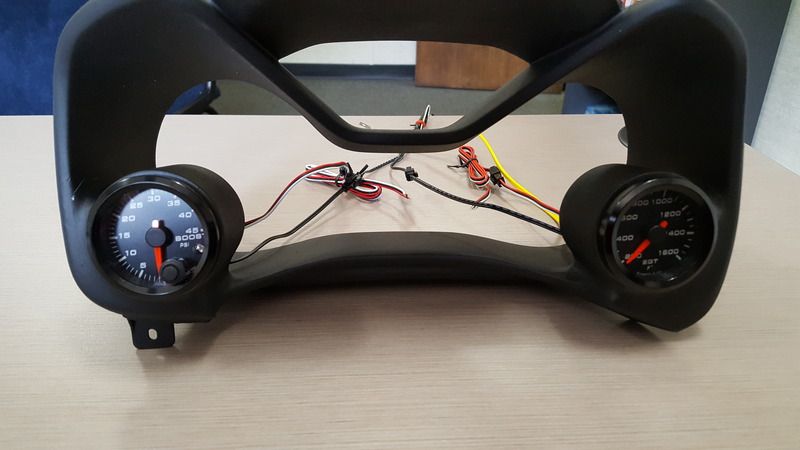

FINALLY! Got my gauges. To be fair, I changed something on the order 3 times and evertime added not only cost, but lead time.
