Shackle, Torsion Bar, Front and Rear Shock Write Up (DONE)

Here is my write up of my shackle and TB lift and how to install new front and rear shocks.


Chevy Colorado Z71 Shackle and Torsion Bar Lift


Items Needed:
1. Hydraulic Jack that reaches 21 inches (The tires need to be able to leave the ground)
2. 21 Inch jack stands
3. Wheel blocks
4. 3/4” wrench
5. 3/4” socket
6. 9/16” wrench
7. 5/8” wrench
8. 1/2” socket
9. 10” extension for socket wrench
10. 1-1/16” socket (for torsion bar adjustment) rotate clockwise will lift the truck
11. 3/16 Allen wrench
12. Vise grip or pliers
13 WD40 (spray all bolt the night before, makes it easy to remove them)
14 Copper Anti-Seize (use to re-grease shackles and shocks)
15 Hammer

Purchase:
1. Shackles http://www.synergyoffroad.com or PM Bubaloo http://www.coloradofans.com/forums/memb ... file&u=157
2. Shocks, Rancho RS5300-Front / RS5325-Rear I got mine from a local auto parts store.

Step 1.
Remove the Spare tire with the kit available under the passenger seat.
-Assemble the kit, crank the rear tire down and remove it.



Step 2.

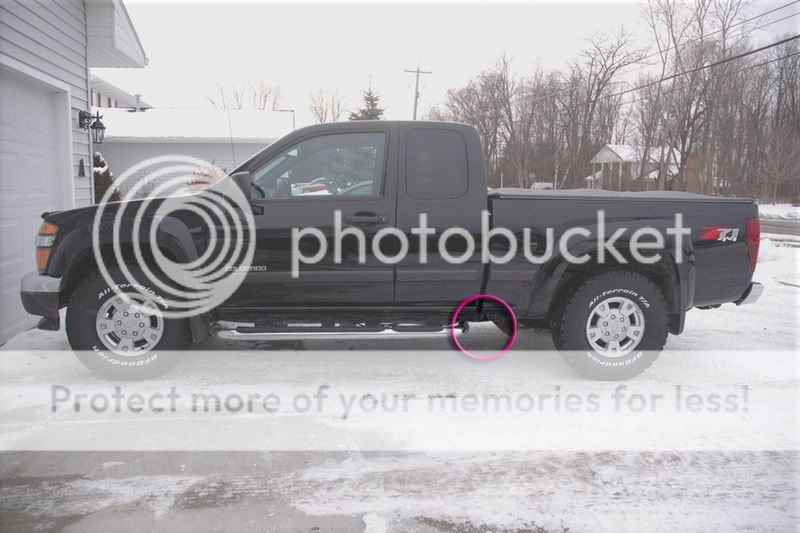

Place the Jack in front of the rear leaf spring and jack it up as high as you can.

Place a Jack stand under the frame, lower the jack until the frame is secure on the jack stand. Do the same to the other side of the truck. The rear wheels should be completely off the ground.

Step 3.
Loosen the rear shackle bolts with a 3/4 in wrench and socket.


Step 4.

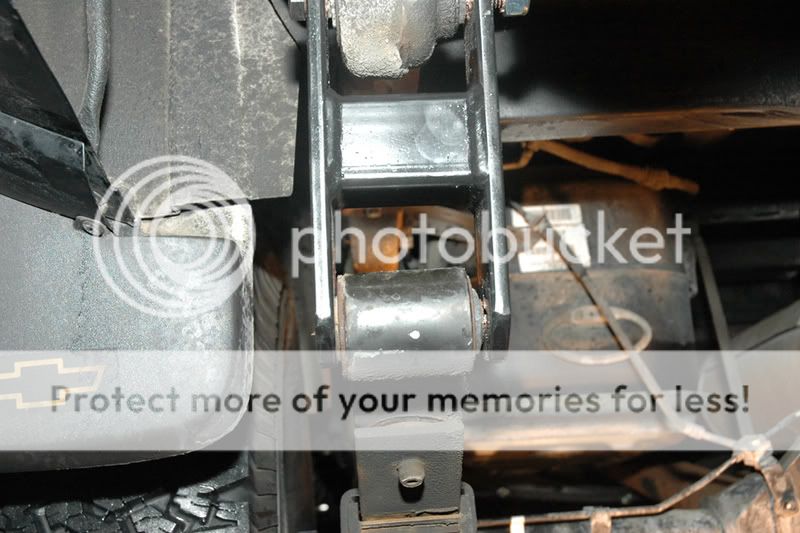

Use the Jack to raise the rear differential to take the tension off the springs. You’ll know when you’ve raised it enough because the shackle will become loose.

You should now be able to remove 3 of the 4 bolts from the shackles.
Use a hammer to knock the bolts out.
I used my 10” socket extension to help remove the bolts from the holes.
*You will need to lower the rear differential enough to allow for the bottom right shackle bolt to clear the exhaust pipe, remove the final shackle bolt.


Step 5.

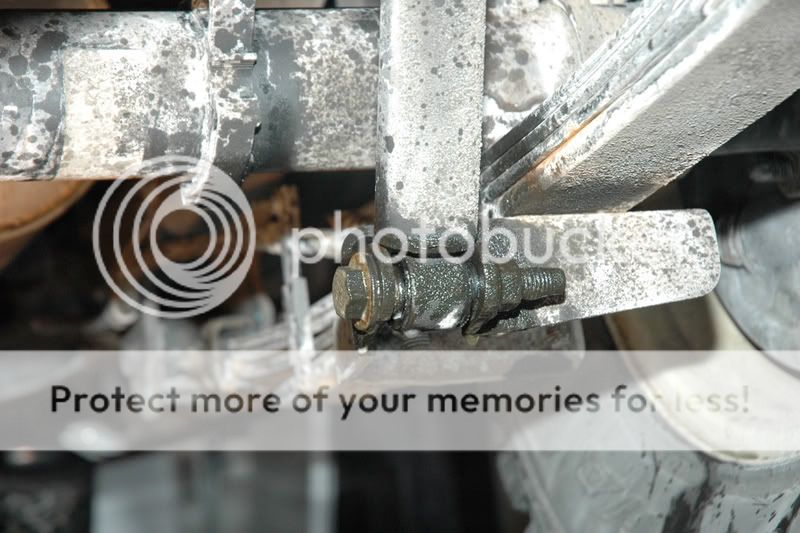

Remove the bottom bolts from the rear shocks using a 3/4” wrench and socket.
(Save these bolts and nuts, you will need them to install the new shocks)

If you do not unbolt or remove the rear shocks the axle will not drop far enough for the springs to line up with the bottom shackle bolt.


Step 6.
Remove the top bolts of the shocks (2 bolts per shock) using a 1/2” socket and the 10” socket extension. The shock will just fall off so watch your face. (Save the bolts to be reused when installing new shocks)



Step 7.
Now we are ready to install the new shackles. Grease the holes of the shackle with some anti-seize. Insert the top bolt and hand tighten the nut.

After both top bolts are in, adjust the jack up or down so the springs line up with the bottom holes of the shackle. Insert the bottom bolts and hand tighten.


Step 8.
Install the rear shocks using the bolts you used from the stock shocks with a 3/4” wrench and socket for the bottom bolt and 1/2” socket and 10” extension for the top bolts. I used Rancho 5190 shocks. Use anti-seize in the bottom shock bolt hole.



Step 9.
Reinstall the spare tire

Step 10.
Lower the jack all the way down (remember all your shackles bolts are still loose)


Step 11.
Tighten all the shackle bolts as much as you can.


Jack up each side of the truck in front of the rear leaf springs one at a time to
remove the jack stands.

YOU’RE DONE WITH THE REAR END!



Step 12. TORSION BAR ADJUSTMENT
Raise the front of the truck until the front wheels are off the ground. Place jack stands under the frame and lower the jack.

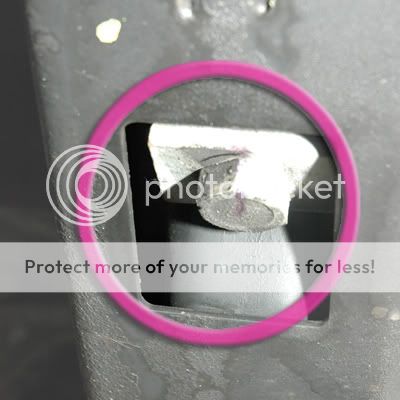

The Torsion Bar is located under the truck half way down the front doors



Use a marker to draw a straight line running from the center of the bolt to the frame so you know when you’ve made one complete rotation.

Use a 1-1/16” socket to turn the bolt clock wise (right) to raise the front end of the truck.

I started by doing 5 complete turns on both sides.

Lower the truck back down to see if the height is where you want it and measure to make sure each side is equal.

I was easily able to turn the bolts with the truck on the ground. I proceeded to turn the passenger side 1 more turn and the drivers side 1-1/4 more turn to get both sides equal and the height where I wanted.

Have a front end alignment done.


Step 13. INSTALLING FRONT SHOCK
You don’t need to lift the truck up to replace the front shocks but it make things much easier.

Step 14.

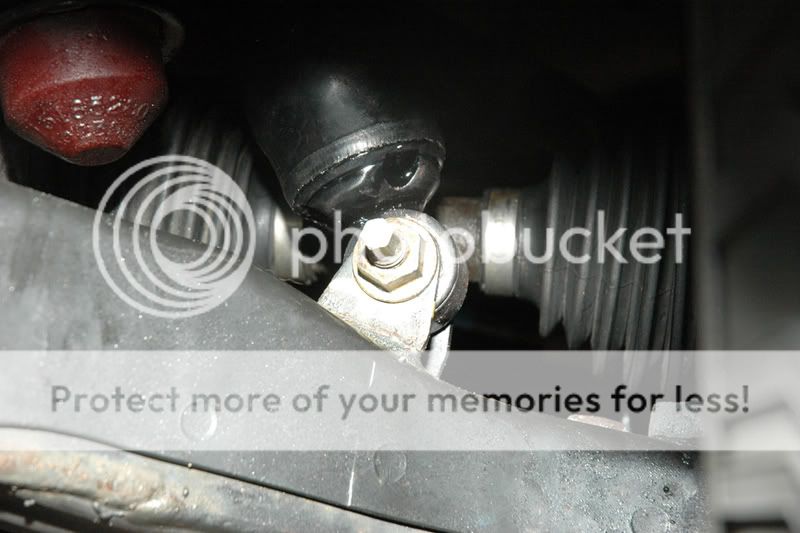

Remove the bottom bolt from the shock using a 3/4” socket and wrench.
Save this nut and bolt for when you install the new shock.

Use a hammer and screwdriver to knock the bolt out.


Step 15.

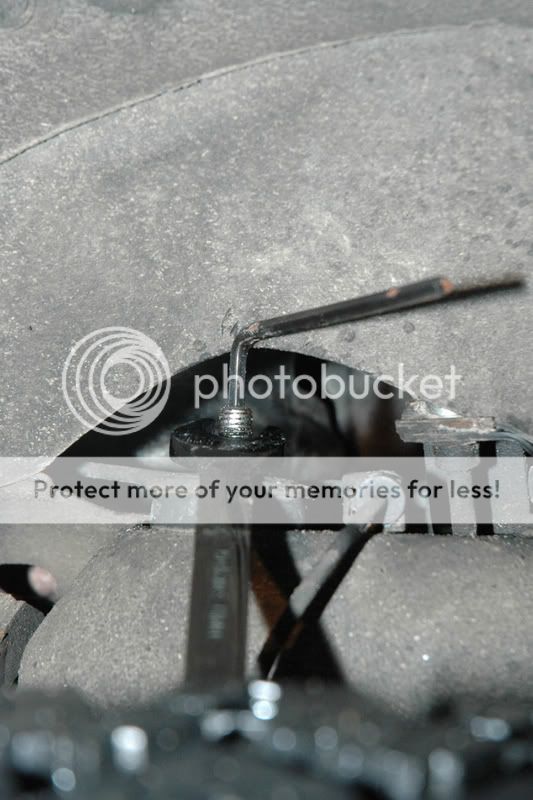

Remove the Top nut using a 5/8” wrench and 3/16” Allen wrench.

The Allen wrench fits into the top of the shock bolt. The shock will fall out onto the ground. You don’t need to keep any parts from the top of the shock you will NOT be reusing them.


Step 16. INSTALLING NEW SHOCKS
I used Rancho 5300 Shocks for the front.
A. Use anti-seize in the bottom bolt hole.
B. Place the shock into the location
C. Install the stock bolt and nut into the bottom bolt hole.




Step 17.
Install the top nut using a 1/2” wrench and the supplied hardware that came with your new shocks.
Install the rubber bushings and metal plates the same way they came off.


Use vise grips/pliers to hold the top of the bolt to keep it from spinning and tighten down the nut as much as you can.

Wash the truck and take lots of pictures to show everyone!!!


THE END :D

gawillet is offline
Sponsored Links
Advertisement

post #2 of 446 (permalink) Old 02-10-2007, 09:37 PM
Senior Member

Canyon08Z71's Avatar

Join Date: Dec 2005
Posts: 4,767
Great job on the write up!

:)
Canyon08Z71 is offline
post #3 of 446 (permalink) Old 02-10-2007, 11:14 PM
Senior Member

Join Date: Jan 2005
Location: Weslaco, Texas
Posts: 3,945
Send a message via Yahoo to Deuce82
awesome pics and great write up!
sticky! :D

Gallery
Lifted Colorado Club Member #50
Deuce82 is offline

post #4 of 446 (permalink) Old 02-10-2007, 11:16 PM
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
why did you have to remove spare tire??

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
post #5 of 446 (permalink) Old 02-10-2007, 11:19 PM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
Quote:
Originally Posted by JeSuS
why did you have to remove spare tire??
i couldn't get the top left bolt out of the stock shackle, it was hitting the spare tire. plus it gave me more head room crawling around down there.

gawillet is offline
post #6 of 446 (permalink) Old 02-11-2007, 10:21 AM
Senior Member

Join Date: Oct 2004
Location: Connecticut USA
Posts: 5,591
Send a message via AIM to Rsquires67
Very nice write up.

Hey mod's sticky this is a great writeup!!!

VOTE for me please in TOTY!!!! viewtopic.php?f=24&t=67915
Rsquires67 is offline
post #7 of 446 (permalink) Old 02-11-2007, 04:31 PM
Senior Member

Join Date: Nov 2006
Location: Winnsboro,Tx
Posts: 156
Great job on the write up. I have been wondering how hard or easy it was to change the front shocks. Now that I know it should be really easy.

04 Colorado 4x4 Z71
HP Tuned by Stocker2
3" PA Body Lift w/ Gap Guards
2" shackles/ TB cranked
33x12.5x15 Maxxis Mudder Buckshots
Magnaflow Exhaust
Lifted Club Member #92
jn_tovar is offline
post #8 of 446 (permalink) Old 02-12-2007, 01:18 AM
Senior Member

Join Date: Oct 2005
Location: new hampshire
Posts: 1,887
Send a message via AIM to lkout4trucks
awesome write up gawillet!!

[ ]lllllllllllllllllllllll[ ] 05 z85 4x4 owner and homemade mod junkie
lllllllllllGMCllllllllllll
[ ]lllllllllllllllllllllll[ ]

UNDER 21 CLUB #1 -retiree
TOTW #39 winner -2007
lifted club member #200
http://www.cardomain.com/ride/550969
lkout4trucks is offline
post #9 of 446 (permalink) Old 02-12-2007, 02:05 AM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
thanks guys, i never could have done it with out this site. The most i had ever done to my truck was change the oil before i found this site. I just wanted to show my appreciation.

gawillet is offline
post #10 of 446 (permalink) Old 02-12-2007, 03:46 AM
Senior Member

Join Date: Oct 2005
Location: new hampshire
Posts: 1,887
Send a message via AIM to lkout4trucks
i havent touched my t-bars yet and i heard it was easy to do but wow!! ....lift,turn,lower. cant get more simple than that.

[ ]lllllllllllllllllllllll[ ] 05 z85 4x4 owner and homemade mod junkie
lllllllllllGMCllllllllllll
[ ]lllllllllllllllllllllll[ ]

UNDER 21 CLUB #1 -retiree
TOTW #39 winner -2007
lifted club member #200
http://www.cardomain.com/ride/550969
lkout4trucks is offline
post #11 of 446 (permalink) Old 02-12-2007, 11:27 AM
Senior Member

Join Date: Aug 2004
Posts: 402
I know that a LOT of people here have been using the Rancho RS5190 for the rear replacement shock, but when I ordered a set of Rancho's from PerformanceLifts.com, they sent a RS5301's. I contacted them, thinking that they had made a mistake, but they assured me that the 5301's were correct. So, I did my shackle lift this weekend, and measured my stock shocks against the RS5301's - and the new Rancho's were exactly 2" longer - turns our that the RS5301's are the correct replacement shock for a 2" shackle lift on a Z85. My question - does the Z71 come with a longer stock shocks than the Z85? If so, we need to make a note that you would need 5190's for a Z71, or 5301's for a Z85.
ulmerc is offline
post #12 of 446 (permalink) Old 02-12-2007, 11:34 AM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
What is the measurement of the stock z85 shocks? I can measure my stock Z71 shocks later to compare. I know that for my truck (z71) 5301 are marked as the recommended shock for stock hieght, but they don't have a size listed for 2" lift.

gawillet is offline
post #13 of 446 (permalink) Old 02-12-2007, 12:18 PM
Senior Member

Join Date: Aug 2004
Posts: 402
I didn't measure the overall lengths - i just laid them side by side and measured the difference, which was 2". According to Rancho, the 5301 measures 23" fully extended.
Rancho Spec Sheet (pdf)
ulmerc is offline
post #14 of 446 (permalink) Old 02-12-2007, 03:06 PM
Member

Join Date: Aug 2006
Location: Maryland
Posts: 39
What is the spacing (height) between the center of the bolt holes for the new shackles (center to center)

'06 Stealth Gray Canyon Z85 4x4

Coulda had a solstice, but got a Canyon!
jeepster105 is offline
post #15 of 446 (permalink) Old 02-12-2007, 03:14 PM
Senior Member

Join Date: Oct 2005
Location: new hampshire
Posts: 1,887
Send a message via AIM to lkout4trucks
HAHAHA i jsut noticed how u covered that license plate gawillet.....hilarious!

[ ]lllllllllllllllllllllll[ ] 05 z85 4x4 owner and homemade mod junkie
lllllllllllGMCllllllllllll
[ ]lllllllllllllllllllllll[ ]

UNDER 21 CLUB #1 -retiree
TOTW #39 winner -2007
lifted club member #200
http://www.cardomain.com/ride/550969
lkout4trucks is offline
post #16 of 446 (permalink) Old 02-12-2007, 03:52 PM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
Quote:
Originally Posted by jeepster105
What is the spacing (height) between the center of the bolt holes for the new shackles (center to center)
7" for 1.5" Lift
8" for 2.0" Lift

Quote:
Originally Posted by lkout4trucks
HAHAHA i jsut noticed how u covered that license plate gawillet.....hilarious!
:D I was wondering how long it would take for someone to notice that HAHAHA. A little photoshop humor for you all.

gawillet is offline
post #17 of 446 (permalink) Old 02-12-2007, 05:26 PM
Junior Member

Join Date: Dec 2006
Posts: 27
That's a great write up and will be very helpful but that's the rear differential not the transfer case that you are jacking up when doing the rear shackles.
flnole78 is offline
post #18 of 446 (permalink) Old 02-12-2007, 05:37 PM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
Thanks You!!, I new it was wrong, but i was having a brain fart when writing this and i didn't want to use the word axle, all i could think of was the transfer case on the other end. I will fix it.

gawillet is offline
post #19 of 446 (permalink) Old 02-12-2007, 06:53 PM
Member

Join Date: Aug 2006
Location: Maryland
Posts: 39
Did Synergy supply new shackle bolts and nuts or did you re-use the old ones? Same question for the rubber bushings.

'06 Stealth Gray Canyon Z85 4x4

Coulda had a solstice, but got a Canyon!
jeepster105 is offline
post #20 of 446 (permalink) Old 02-12-2007, 07:14 PM Thread Starter
Senior Member

Join Date: Oct 2006
Location: Midland, Michigan
Posts: 593
Quote:
Originally Posted by jeepster105
Did Synergy supply new shackle bolts and nuts or did you re-use the old ones? Same question for the rubber bushings.
Yes Synergy suppied all the bolts and nuts. The rubber bushings and the nut were supplied for the front shocks. The rear shocks, the bushing were already in place, I had to reuse the stock top and bottom bolts.

gawillet is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Chevy Colorado & GMC Canyon forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
