*How-To* Shocks - Front & Rear!! - Chevy Colorado & GMC Canyon

LinkBack Thread Tools Display Modes
post #1 of 13 (permalink) Old 02-10-2007, 10:13 PM Thread Starter
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
*How-To* Shocks - Front & Rear!!

**I will have wrench sizes later tonight if needed**

What you will need:
-1/2 in socket wrench
-1/4 in socket wrench & 6+in extension
-2+ton jack
-(2)2+ ton jack stands
Rear!
Step 1: Lift the rear of truck via frame and support with jack stands. (easy part)
Step 2: Remove lower shock bolt. (smack it a few times and it will come out)


Step 3: Remove both upper shock bolts. (extension comes in handy here)

(late pic but still works)
Step 4: Remove stock shock. Repeat for other side.
Step 5: Install new shock and hand tighten upper bolts to hold shock in place.
Step 6: Install lower shock bolt.
Step 7: Tighten upper bolts. Torque them down good. Tighter is better.
Step 8: Tighten lower bolt. Torque it down good as well. Repeat for other side.
BAM!!!


Front!
**Z71 specific**

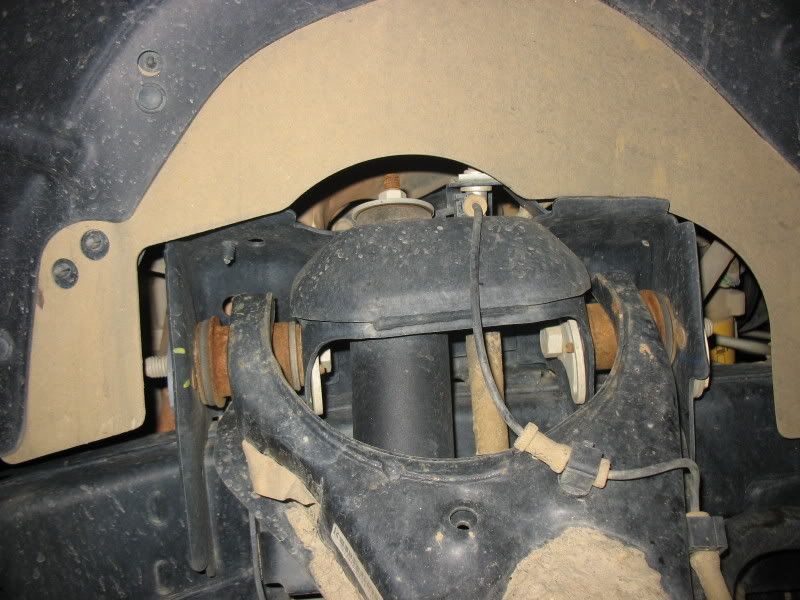

Step 1: Lift up and support front end of truck..
Step 2: Remove front tires.

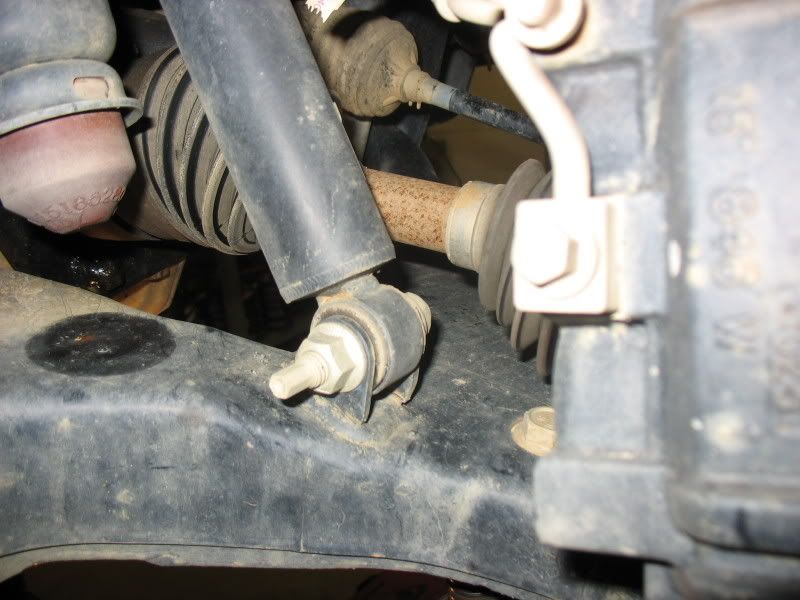

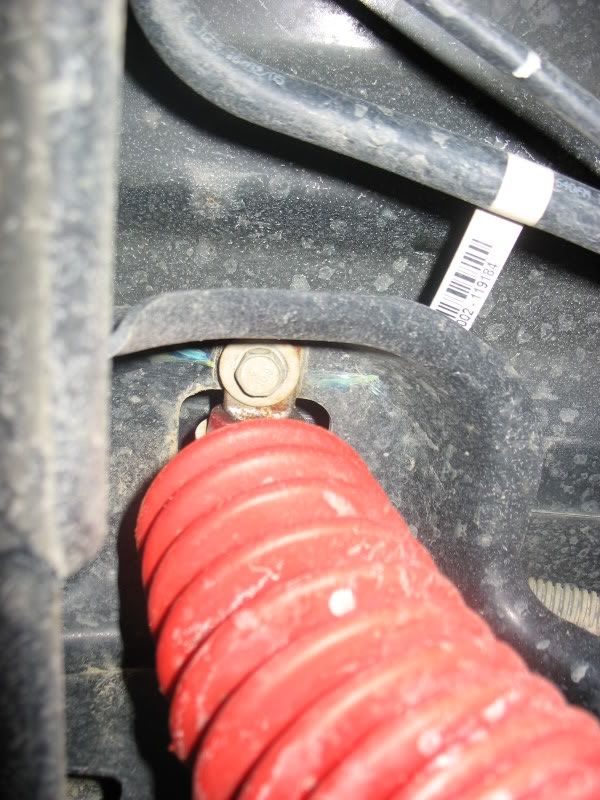

Step 3: Remove up shock bolt. (requires torx style bolt to hold bolt still) Use open ended wrench to remove bolt.

Step 4: Remove lower bolt.

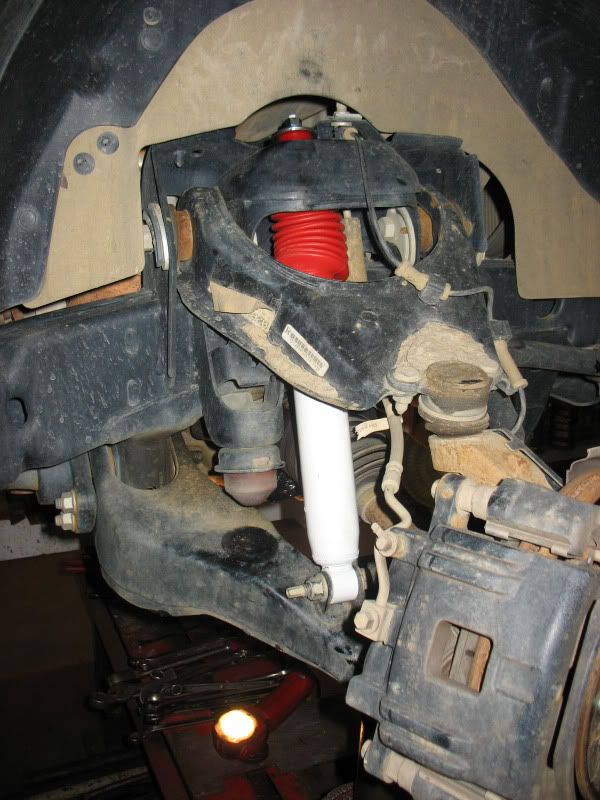

Step 5: Place new shock and re-insert lower bolt. (do not tighten)
Step 6: Place new bushing on upper bolt and tighten down good. (different shocks will need a diffrent tool to hold upper bolt still)
Step 7: Tighten lower bolt real good.
Done!


Sexy huh?

If i missed anything let me know so i can fix it.

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
Sponsored Links
Advertisement

post #2 of 13 (permalink) Old 02-10-2007, 10:28 PM Thread Starter
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
random pictures!
http://s44.photobucket.com/albums/f42/j ... o/?start=0

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
post #3 of 13 (permalink) Old 02-10-2007, 11:16 PM
Senior Member

Join Date: Apr 2004
Location: Springboro, Ohio
Posts: 433
Send a message via AIM to incuboy05
Just wondering what the part number and what vehicle the front shocks are for? Thanks.

2004 Colorado Crew Cab Z71 4x4 LS
Black
3.5L I-5 Auto
incuboy05 is offline

post #4 of 13 (permalink) Old 02-11-2007, 01:38 AM Thread Starter
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
same truck as you show in your sig but an 05...

skyjacker 8084 and 8040 i believe...they have them at summitracing.com

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
post #5 of 13 (permalink) Old 02-11-2007, 01:47 AM
Senior Member

Join Date: Dec 2005
Location: Renton, WA
Posts: 5,262
Send a message via AIM to sillyoldtayo
very helpful dude! i think this should be a sticky! get the TOrx tool sizes for everything as well! And this will be a very helpful thread for those needing some assistance!


TOTW #25...SWEEEEETRUCK!
sillyoldtayo is offline
post #6 of 13 (permalink) Old 02-11-2007, 02:16 AM
Senior Member

Join Date: Apr 2004
Location: Springboro, Ohio
Posts: 433
Send a message via AIM to incuboy05
I have bilstein shocks in the rear right now for the lift from the shackles. I was wondering which bilstein shocks I needed to buy for the front? I cannot find out which ones I need. The rear ones are made for a zr2 s10 lifted 0-2 inches.

2004 Colorado Crew Cab Z71 4x4 LS
Black
3.5L I-5 Auto
incuboy05 is offline
post #7 of 13 (permalink) Old 02-11-2007, 02:42 AM Thread Starter
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
from their site they dont list them. i checked a couple others and they dont list part numbers. dunno what else to tell you about the bilstein ones

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
post #8 of 13 (permalink) Old 02-11-2007, 03:37 PM
Senior Member

Join Date: Nov 2006
Location: Winnsboro,Tx
Posts: 156
Great job on the write up.

04 Colorado 4x4 Z71
HP Tuned by Stocker2
3" PA Body Lift w/ Gap Guards
2" shackles/ TB cranked
33x12.5x15 Maxxis Mudder Buckshots
Magnaflow Exhaust
Lifted Club Member #92
jn_tovar is offline
post #9 of 13 (permalink) Old 02-11-2007, 05:14 PM
Senior Member

Join Date: Nov 2005
Location: IN
Posts: 3,901
Good job, but for the noobs there are two things I feel I should point out.

1. The front only applies to Z71's or 4X4's. 2wd (except Z71) have a coilover shock assembly and will require extra work.

2. In your writeup for the rear you said "Tighter is better." Everything has a torque spec. Now I'm not saying you should have to break out your torque wrench to replace your rear shocks but your philosophy is only applicable if you're too weak to break/strip out bolts. I've seen too many things ruined by goons overtightening things to not bring it up. Use good sense when tightening things down.

Other than that, great job. Very good writeup. I'm glad members are taking the initiative to make more writeups. It's only going to help the community. Maybe we should make a sticky with a link to all of the how-to's?

04 Colorado ZQ8 I5/AT
If you can't afford to do it right, then how can you afford to do it twice?
brakenit is offline
post #10 of 13 (permalink) Old 02-12-2007, 03:45 PM Thread Starter
Senior Member

Join Date: Mar 2006
Location: Chester/Richmond, VA
Posts: 1,745
bump

2005 Rado Z71 Ext Cab I5
Vent Visors | Redline Hood Lift Kit
2"shackles/TBar lift/Skyjacker Nitro 8k's
Diff Drop 3/4" | Pro-Comp AT's | 1" BL soon
Lifted Club Member #80
Gun Toting American Club Member #34
JeSuS is offline
post #11 of 13 (permalink) Old 05-30-2016, 06:31 PM
Junior Member

Join Date: Jul 2008
Location: OH
Posts: 16
I know this thread is ancient, but I'm doing this repair now and was wondering about bushing placement. My new front shocks came with 2 rubber bushings and 2 bushing washers, but the old shocks only had one of each on the very top. I'm just wondering if I need the 2nd set or if they're extras. This is a nice write up, but more detail in each step is always better! Thanks!
dhectorg is offline
post #12 of 13 (permalink) Old 05-30-2016, 06:45 PM
Senior Member

Join Date: Dec 2010
Location: Homestead, Florida
Posts: 4,866
One of the bushings goes below the frame mount, with the washer on the bottom, and the other above, with the washer on top. That's on each shock.
cart7881 is offline
post #13 of 13 (permalink) Old 06-18-2016, 01:18 PM
Junior Member

Join Date: May 2012
Posts: 1
JeSuS - Thanks for this post! It was great to have the photos.

Rear Upper Bolts were 15mm
Front Upper Bolt was 15mm
Lower Nuts were 3/4

Thanks again!
kcampbe is offline
